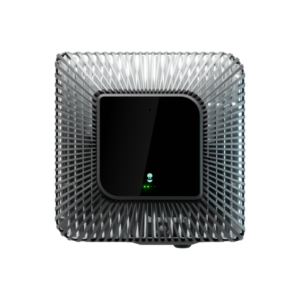

Wallbox Quasar

The first bidirectional charger for home use

The charging revolution that allows energy to flow two ways. Quasar is the first charger for your home using advanced bidirectional charging technology. It charges and discharges through a CHAdeMO vehicle connector and is available with a maximum power of 7.4 kW.

Wallbox Quasar | electric car DC charger CHAdeMO bidirectional | 7,4kW

Product Features

	Output DC 7,4kW bidirectional
	Cable length: 5m
	different electric cars with CHAdeMO plug
	Steel housing
	Anti-corrosion and powder coating

Dimensions and weight

	350 x 350 x 150 mm
	27kg

Connection supply

AC 400V +/- 5% / 50/60Hz / 3P + N + PE / 32A

DC CHAdeMO

Suitable for

all electic cars with CHAdeMO plug

MyWallbox portal

Configure, monitor, and manage your Pulsar Plus from the myWallbox portal via a mobile app or web portal. The myWallbox portal gives you real-time information about consumption, charging time, and energy costs. You can set up the payload and lock (and unlock) the charging station to prevent abuse.

Wallbox app for smartphone and tablet

You can view and manage all device settings from your mobile phone or tablet via the Wallbox app. The app’s functions include setting the charging current, locking and unlocking the charging station, scheduling charging sessions (for example, at the time when the energy price is lower) and more
