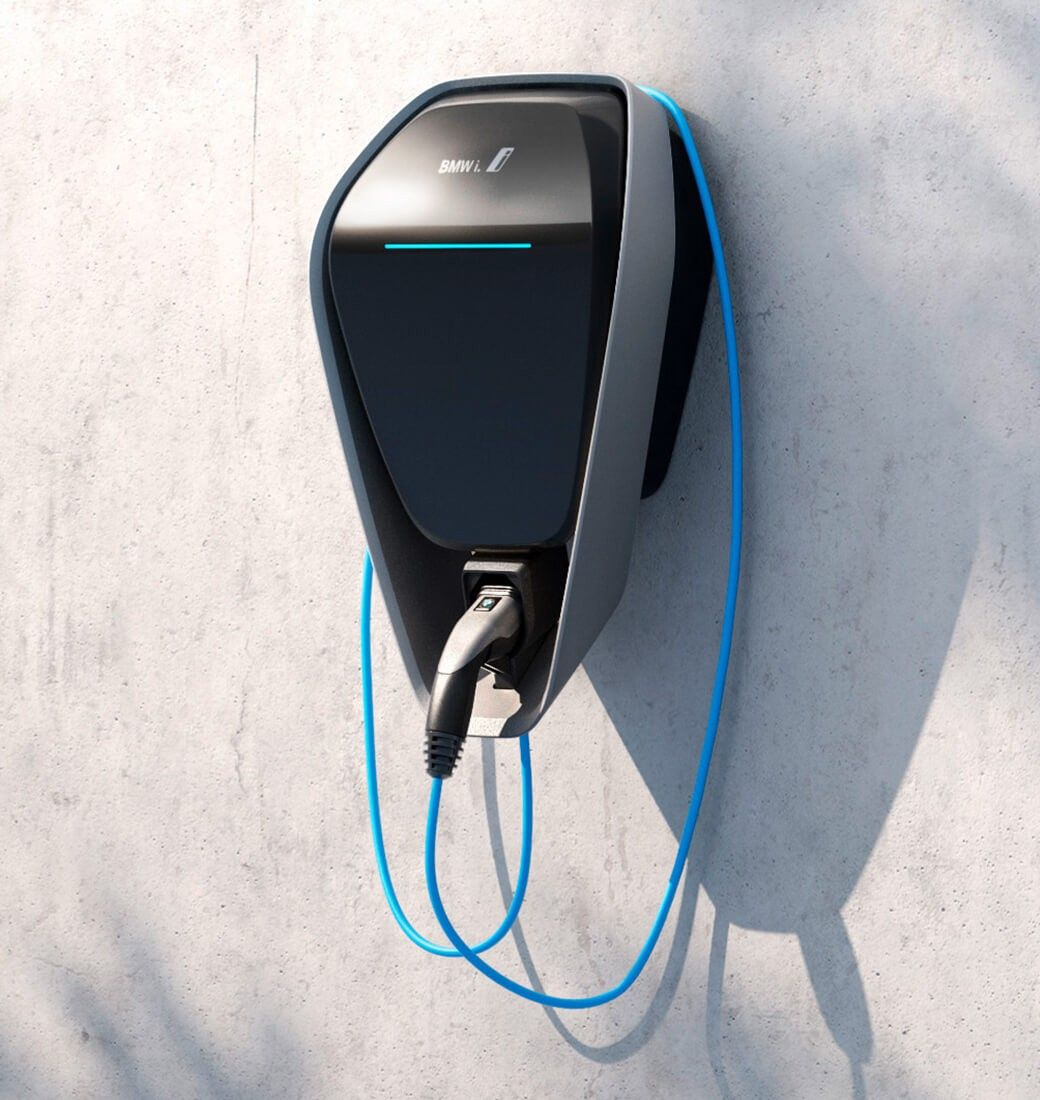

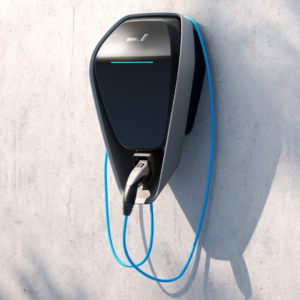

The gas station for your home. Charging station for BMW electric and hybrid vehicles (Battery Electric Vehicles BEV and Hybrid Electric Vehicles (PHEV)

The wallbox was developed taking into account numerous customer requirements and the experience of the 1st generation of wallboxes, as well as design, material, safety and sustainable production respected.

Compared to the OUC base cable supplied with the vehicle, the wallbox achieves up to six times the charging speed. DC fault detection is already integrated in the wallbox and thus contributes to significant savings in installation costs. Maximum charging convenience: the cable is wound and unwound around the wallbox, so bending over is no longer necessary. Plug & Play: If the plug is plugged into the vehicle, charging starts automatically without any further operating steps being necessary.

Information:
• 3-phase (400 volts, 32A, type 2 plug)
• 5m cable permanently installed
• Adjustable charging power up to 22KW
• RFID detection (enables the connection of max. 3 vehicles)
• Wallbox can be controlled via smartphone app (iOS, Android )
• Housing serves as cable management
• Can also be used for I3 and I8 single-phase

Technical data:
• Dimensions: 399 mm x 652 mm x 202 mm
• Weight: approx. 8 kg
• Charging power shorter charging time: from 7.4 kW (1PH) to to 22 kW (3PH)
• Load standard Meets IEC 61851
• Connection voltage : 230 V, 230/400 V 3N
• Mains frequency: 50 Hz / 60 Hz
• Connection type: 10 A, 13 A, 16 A, 20 A, 25 A or 32 A (3-phase or 1-phase)
• Protection class: IP54 / IK08

The power cable from the house installation to the wallbox and the fuse protection must be ordered separately. This is specific to each market and connection case. The BMW i Wallbox should only be installed by a specialist. We recommend the BMWi installation service. Item

number: 61902420905

suitable for:
• i3
• i8
• 225xe (2 Series Active Tourer – F45)
• 330e / eX (3 Series Sedan – F30 / G20)
• 530e / eX (5 Series Sedan – G30)
• 740e / 745e (7 Series Sedan – G11 )
• 740Le / LeX / 745Le / LeX (7 Series Sedan – G12)
• X1 25eX (F48)
• X3 30eX (G01)
• X5 40eX (F15)
• X5 45eX (G05)
• iX3 BEV (G08)
